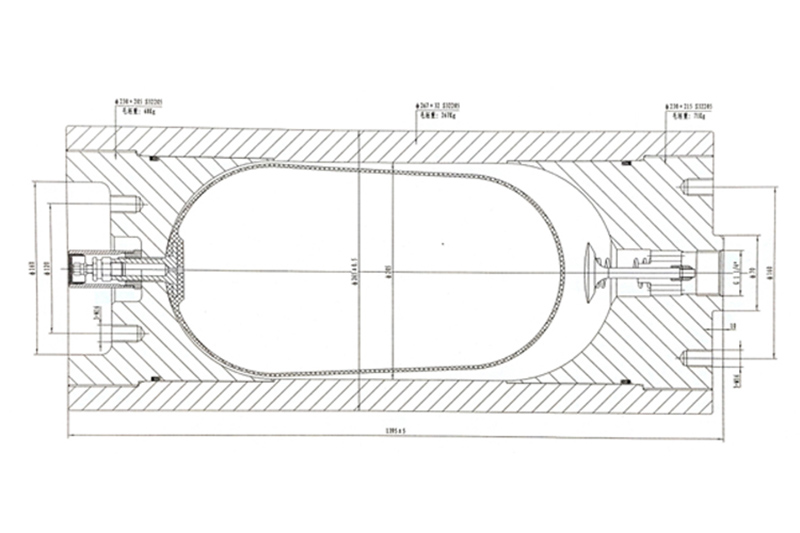

Designed specifically for offshore environments, this high-pressure stainless steel bladder accumulator boasts a maximum operating pressure of 6,000 PSI. It features a gas-tested rubber diaphragm inside the shell, which discharges fluid from the accumulator into the system on demand.
Features
★ The standard version features a 316 stainless steel shell rated for 5,000 PSI, and can be upgraded to 6,000 PSI with a 2205 duplex stainless steel shell
★ Maximum usable volume: 50 L
★Standard NBR material; other sealing materials are available as options
★ Standard sealing materials are suitable for petroleum-based hydraulic oils.
★ Designed and manufactured in compliance with ASME VIII standards.
Code
| STANDARD | TYPE | VOLUME | PRESSURE | Port Type | Size | Medium |
| C- | BL- | 0.5- | 3000- | FG- | 20- | H |
| C-normal | bladder | 0.5 | 3000psi | FM-Metric | 20- 1-1/4" | H-hydraulic oil |
| AC-ASME | - | 5000psi | FG-BSPP | 16- 1" | - | |
| - | - | 50 | 6000psi | - | 12-3/4" | - |
| For special requirements, including dimensions, sealing materials, special connections, etc., please contact the Sales Department. | ||||||
